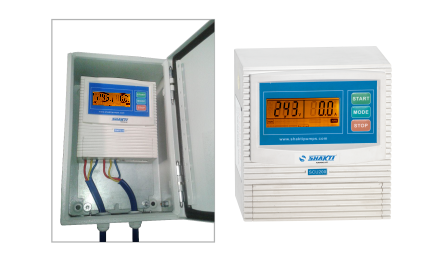

Model SCU200 is an easy to use, programmable controlling and protection device for direct start, single phase submersible pumps and motors, self priming pumps, openwell, monoblock pumps etc. with output power from 0.37KW-3.7KW (0.5HP - 5HP) Model SCU200 has an important feature that makes the difference between model SCU200 and common On/Off pump control box that is, the float switch that makes it a very reliable and sensitive protection against pump dry run without installation float switch in the well.
Single Phase - SCU200
- Rated output power : 0.37KW-3.7KW (0.5HP-5HP)
- Rated input voltage : AC220V/50HZ
- Trip response time of over load : 5 sec - 5 min
- Trip response time of short circuit : 0.1 sec
- Trip response time of under / over voltage : 5 sec
- Trip response time of dry run : 6 sec
- Recovery time of over load : 30 min
- Recovery time of under / over voltage : 5 min
- Recovery time of dry run : 30 min
- Tripping over voltage : 253V
- Tripping under voltage : 130V
Features:
- Auto / Manual switch
- Liquid level control or float switch
- Dynamic LCD displaying pump's running state
- Protects the pump against many faults
- Push Button Calibrations
- Reserved space for installing internally run capacitor of pump motor
- Open Phase protection
- Detects jam if pump is not working
- Provides protection from Dry run, Over load, Under voltage, Over voltage , Pump stalled, Short circuit
- Domestic water supply
- Agricultural usage
- Industrial Application
- Waste water management
- Heating & cooling application
- Ground water supply
- Irrigation in horticulture & agriculture
