Model SMPC-S is an easy to use, programmable protection device for direct start, three phase submersible pumps and motors, self priming pumps, openwell, monoblock pumps etc with output power from 0.75KW-9.3 kW (1HP-12.5HP) Model SMPC-S has many operation modes by adopting different electric installations. An important feature that makes the difference between model SMPC-S and common On/Off pump control box is the float switch free in the well. Our special design makes it a very reliable and sensitive protection against pump dry run without installation float switch in the well.

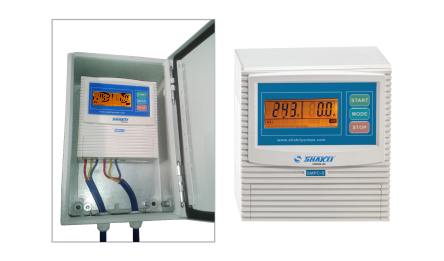

Digital Starter Three Phase - SMPC-S
- Rated output power : 0.75KW-9.3 kW (1HP-12.5HP)
- Rated input voltage : AC380V/50HZ
- Trip response time of over load : 5sec-5 min
- Trip response time of short circuit : 0.1 sec
- Trip response time of under / over voltage : 5 sec
- Trip response time of dry run : 6 sec
- Recovery time of over load : 30 min
- Recovery time of under / over voltage : 5 min
- Recovery time of dry run : 30 min
- Tripping over voltage : 437V
- Tripping under voltage : 240V
Features:
- Auto / Manual switch
- Liquid level control or float switch
- Dynamic LCD displaying pump's running state
- Protects the pump against many faults
- Push Button Calibrations
- Reserved space for installing internally run capacitor of pump motor
- Open Phase protection
- Detects jam if pump is not working
- Provides protection from Dry run, Over load, Under voltage, Over voltage , Pump stalled, Short circuit
- Domestic water supply
- Agricultural usage
- Industrial Application
- Waste water management
- Heating & cooling application
- Ground water supply
- Irrigation in horticulture & agriculture
