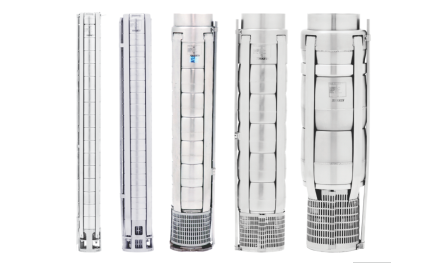

Submersible Pumps

Shakti submersible water pump is in high demand due to its innovative mechanical design and impeccable quality. It has carved a niche as the most predominant submersible pump and the company is one of the leading suppliers of submersible pumps in India. It is available in all size range starting from 100 mm. Shakti submersible pumps are manufactured from the superlative quality raw material using advanced fabrication technology, which ensure optimum performance and excellent quality.

Pump body is made with anti corrosive material with high wear resistance resulting in reduction in running costs and higher pumping efficiency and longevity. The pump can work continuously for a longer period of time without any trouble. Higher reliability and best results even under harsh conditions make it acceptable to its users.

A WIDE PUMP RANGE:

We offer submersible pumps with energy- efficient duty points ranging from 7 GPM to 1100 GPM. The pump range consists of many pump sizes and each pump size is available with an optional number of stages to match any duty point.

HIGH PUMP EFFICIENCY:

Often pump efficiency is a neglected factor compared to the price variations and are without importance of pump and motor efficiencies

EXAMPLE:

When pumping 125 m3/h with a head of 200m for a period of 10 years $ 60,000 will be saved if pumps and motors having a 10% higher efficiency are chosen and the price is $ 0.10 per kW.

APPLICATIONS:

We offer a complete range of pumps and motors which as a standard are made completely of stainless steel AISI-304. This provides for good wear resistance and a reduced risk of corrosion when pumping ordinary cold water with a minor content of chloride.

LOW INSTALLATION COSTS:

Stainless steel means low weight facilitating the handling of pumps and resulting in low equipment costs and reduced installation and service time. In addition pumps will be as new after service due to the high wear resistance of stainless steel

BEARINGS WITH SAND CHANNELS:

All bearings are water- lubricated and have a square shape, enabling sand particles, if any, to leave the pump together with the pumped liquid.

INLET STRAINER:

The inlet strainer prevents particles over a certain size from entering the pump.

NON-RETURN VALVE:

All pumps are equipped with a reliable non-return valve in the valve casing preventing back flow in connection with pump stoppage.

Furthermore , the short closing time of the non-return valve means that the risk of destructive water hammer is reduced to a minimum.

The valve casing is designed for optimum hydraulic properties to minimize the pressure loss across the valve and, thus, contributes to the high efficiency of the pump.

PRIMING SCREW:

All QF and QF 30 pumps are fitted with a priming screw. Consequently, dry running is prevented because the priming screw will make sure that pump bearing are always lubricated.

Due to the semi-axial impellers of large QF pumps (except for QF 30) this priming is automatically provided.

However, it applies to all pump types that if the water table is lowered to a level below the pump inlet neither pump nor motor will be protected against dry running.

STOP RING:

The stop ring prevents damage to the pump during transport and in case of up-thrust in connection with start-up.

The stop ring, which is designed as a thrust bearing limits axial movements of the pump shaft.

Example: QF 125:

The stationary part of the stop ring (A) is secured in the top bowl (Upper intermediate chamber). The rotating part (B) is fitted above the collet [split cone(c)].

Application :
The QF pumps are suitable for the following application :

  • Raw water supply.
  • Irrigation systems.
  • Groundwater lowering.
  • Pressure boosting.
  • Industrial applications.

TYPE KEY :
Example:

Type range ———————————————————————- QF
Nominal flow rate x 10 Ipm ———————————————– 210
Number of impellers ——————————————————– -5
First impeller with reduced diameter (A,B or C) ——————- -A
Second impeller with reduced diameter (A,B or C) ————– B
SS-304, SS-316 —————————————————————– N

PUMPED LIQUIDS:
Clean, thin, non-aggressive liquids without solid particles or fibers

OPERATING CONDITIONS:

  • Flow rate, Q: 1.2 m3/h – 280 m3/h
  • Head, H: Max 670m

Maximum Liquid Temperature

Motor Installation
Flow Velocity Past Motor Vertical Horizontal
4", 6" & 8" 0.15 m/s 40°c 40°c

The speed of the motors is approximately :

  • 4? motors : n=2870 min-1
  • 6motors : n=2870 min-1
  • 8? to 12? motors : n=2870 min-1
  • The measurements were made with airless water at a temperature 2 of 20°c.The curves apply to a kinematic viscosity of 1mm /s. When pumping liquids with a density higher than that of water, motors with correspondingly higher outputs must be used.
  • The bold curves indicate the recommended performance range.
  • The performance curves are inclusive of possible losses such as non-return valve loss.

QF2, QF5, QF6, QF12, QF20, QF25 CURVE :

  • Q/H: The curves are inclusive of valve and inlet losses at the actual speed
  • Power Curve: Bpkw/Stage shows pump power input per stage
  • Efficiency Curve: Efficiency shows pump stage efficiency

QF10, QF15, QF30, QF50, QF75, QF100, QF125, 0F160, QF210, QF270, QF360 CURVE

  • Q/H: The curves are inclusive of valve and inlet losses at the actual speed
    Operation without non-return valve will increase the actual head at nominal performance by 0.5 to 1.0 m
  • NPSHR The curve is inclusive of suction case and shows required inlet pressure
  • Power Curve: It shows pump power input at the actual speed for each individual pump size
  • Efficiency Curve: Efficiency shows pump stage efficiency
